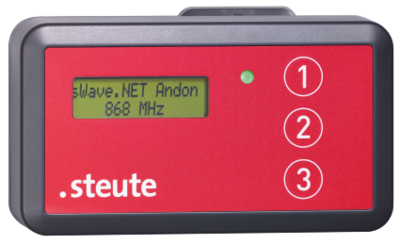

RF MAKD 3F-NET

Andon push button

Andon push buttons can optimise processes throughout assembly, packaging and dispatch zones. These devices facilitate an efficient flow of information and are used for tasks such as the manual notification of errors and requirements, as well as to request an automated guided vehicle to collect or deliver goods in intralogistics applications.

Highlights

  • Plastic housing is resistant to alcohols, ester, diluted acids, diluted alkalis, solvents, ketones and household cleaning agents

  • Power supplied by conventional batteries


Andon push button

These devices are easy to retrofit on FIFO racks or at work stations, making it possible to integrate them in existing processes at a later date. This in turn significantly increases process stability and transparency in the factory. High costs for power and network cables can be completely eliminated. The sWave.NET® wireless technology facilitates high overall transmission times and several years of maintenance-free operation. The three available buttons (for text messages) and the display duration can all be freely configured using the Sensor Bridge software.

Technical data

Protocol
sWave.NET®
Antenna
integrated antenna
Wireless range
max. 450 m
Voltage source
3 x batteries Mignon/AA/LR6 (replaceable)
Display
2 x 16 characters, monochrome
Battery life
up to 7 years, depending on switching frequency and activity time of the display
Enclosure
ABS, self-extinguishing UL 94 V-0
Mounting
wall bracket
Degree of protection
IP40
Ambient temperature
–10 °C … +60 °C

Downloads

Mounting instructions – RF MAKD 3F-NET

German, English, French, Italian, Portuguese, Russian

PDF 4 MB 13.11.2025

Product list

Type Article no.
RF MAKD 3F SW868-NET 1408239 Data sheet
RF MAKD 3F SW915B-NET Data sheet
