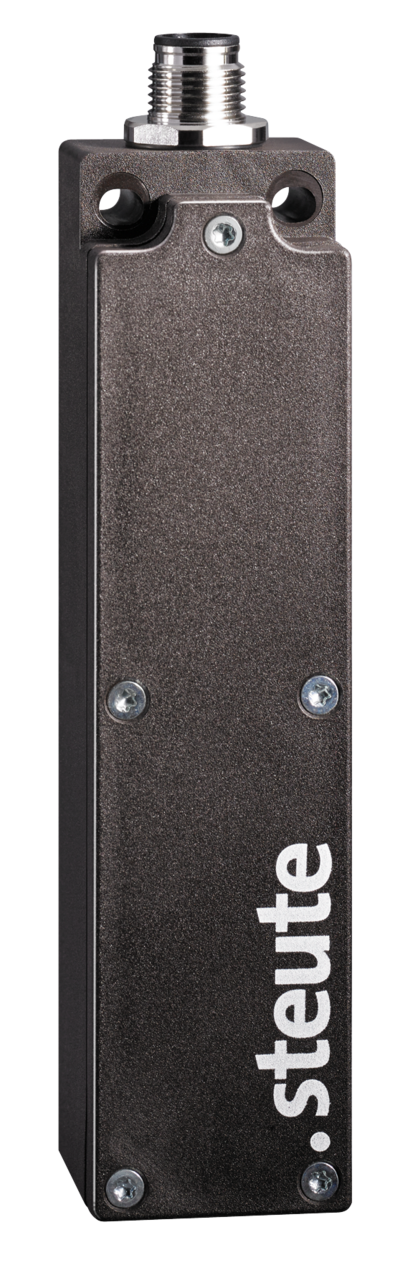

RF 96 ST-NET

Universal transmitter

Universal transmitters facilitate the wireless transmission of signals from cabled switches and sensors. They are particularly suitable for use in machine parts which have been moved or installed only temporarily. Wireless universal transmitters can be mounted directly on machines and plants. The wiring of the »last metre« to the sensors is carried out using pre-wired M12 plug-in connectors. Wireless transmission is managed by the tried-and-tested sWave.NET® wireless technology.

Highlights

  • Quick and easy integration in existing systems via the Sensor Bridge

  • Configurable online via wireless interface

  • High scalability – up to several hundred sensors in one application

  • Plug-in connector: M12

  • Battery life approx. 10 years

  • Optionally available with external power supply for operation with 12-24 V DC sensors


Technical data

Protocol
sWave.NET®
Antenna
integrated antenna
Wireless range
max. 450 m
Voltage source
lithium battery (replaceable) or external 24 V power supply
Connection
plug-in connector M12 x 1, 4-pole, A-coded
Battery life
approx. 10 years (depending on actuation frequency)
Enclosure
thermoplastic, glass-fibre reinforced, shockproof
Mounting
screws M4
Degree of protection
IP67
Ambient temperature
–20 °C … +65 °C

Downloads

Mounting instructions – RF 96 ST-NET

German, English, French, Italian, Portuguese, Russian

PDF 2 MB 13.11.2025
Mounting instructions – RF 96 ST Vcc extern-NET

German, English, French, Italian, Portuguese, Russian

PDF 3 MB 13.11.2025

Product list

Type Article no.
RF 96 ST SW868-NET 1452592 Data sheet
RF 96 ST SW915-NET Data sheet
RF 96 ST SW917-NET 1335584 Data sheet
RF 96 ST SW922-NET Data sheet
RF 96 ST SW868 Vcc extern-NET 1467609 Data sheet
RF 96 ST SW915 Vcc extern-NET Data sheet
RF 96 ST SW917 Vcc extern-NET Data sheet
RF 96 ST SW922 Vcc extern-NET Data sheet
