RF 96-NET

Position switch

Wireless position switches are used wherever moving machinery or plant parts must be positioned, monitored or switched off. The many different application fields range from monitoring of small load carrier movements in intralogistics to security tasks in various areas of industrial building automation, drinking water storage and regenerative energy supply.

Highlights

  • Affordable and flexible thanks to elimination of wiring and cabling

  • High scalability – up to several hundred sensors in one application

  • Mounting dimensions to EN 50047

  • Configurable online via wireless interface

  • Simple operation and integration in existing ERP systems via Sensor Bridge

  • Battery life approx. 10 years


Position switch

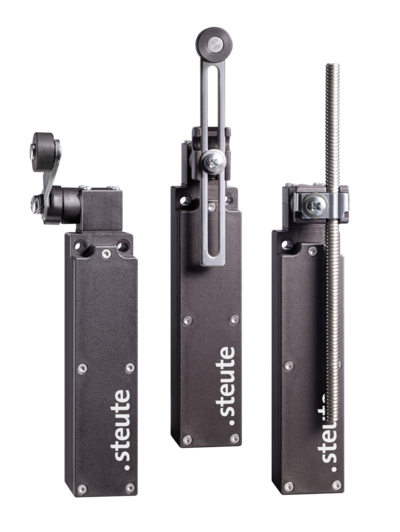

Depending on the application in question, a wireless position switch can be equipped with a choice of actuators, such as a plunger, a roller lever or a push button. A long-life lithium ion battery supplies the necessary power. Because of their high protection class, these wireless switching devices are suitable for indoor and outdoor applications. Furthermore, explosion-protected wireless switching devices for Ex zones 1 and 2, as well as 21 and 22, are available.

Technical data

Protocol
sWave.NET®
Antenna
integrated antenna
Wireless range
max. 450 m
Voltage source
lithium battery (replaceable)
Battery life
approx. 10 years (depending on actuation frequency)
Mechanical life
> 1 million operations
Enclosure
thermoplastic, glass-fibre reinforced, shockproof
Mounting
screws M4
Degree of protection
IP67
Ambient temperature
–20 °C … +65 °C

Downloads

Mounting instructions – RF 96-NET

German, English, French, Italian, Portuguese

PDF 1 MB 13.11.2025

Product list

Type Article no.
RF 96 D SW868-NET 1446146 Data sheet
RF 96 D SW915B-NET Data sheet
RF 96 D/90° SW868-NET 1452243 Data sheet
RF 96 D/90° SW915B-NET Data sheet
RF 96 DF SW868-NET 1445732 Data sheet
RF 96 DF SW915B-NET Data sheet
RF 96 DF/90° SW868-NET 1452425 Data sheet
RF 96 DF/90° SW915B-NET Data sheet
RF 96 DL/90° SW868-NET 1452500 Data sheet
RF 96 DL/90° SW915B-NET Data sheet
RF 96 DS SW868-NET 1446019 Data sheet
RF 96 DS SW915B-NET Data sheet
RF 96 TK SW868-NET 1439052 Data sheet
RF 96 TK SW915B-NET Data sheet
RF 96 WK SW868-NET 1477080 Data sheet
RF 96 WK SW915B-NET Data sheet
